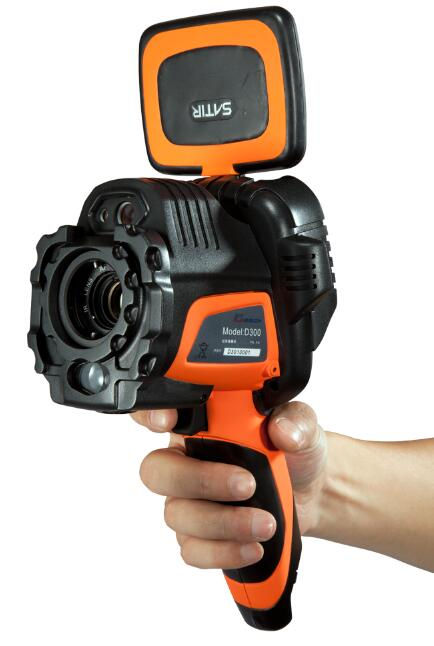

The all-new SATIR D300 signifies a paradigm shift in user-centric thermal imaging technology. This innovative device prioritises intuitive operation while delivering exceptional image quality. The high-resolution 384x288 detector ensures the capture of crisp, detailed thermal images, empowering users to make informed decisions with confidence.

Furthermore, the integrated laser ranging feature eliminates the need for manual focusing, automatically achieving a sharp and focused image on the target of interest. The D300 further elevates image clarity through the implementation of groundbreaking Duo Vision Plus technology, which uses a digital overlay to create exceptionally clear thermal views.

Finally, the D300 incorporates a user-friendly touchscreen interface that seamlessly integrates with Duo Vision Plus for effortless auto-focusing. This combination of intuitive design and advanced features empowers professionals of all experience levels to achieve optimal results.

Key Features

- Digital Zoom

- IR/ Digital/Duo-Vision/Duo Vision Plus

- Laser Pointer

- 8 Hours Battery Life

- Adaptable LCD Display

- Easy to use interface

- 10MP High Definition Camera

- Thermal Video Recording

Image Performance

Detector Resolution: 384x288

Super Resolution: Support,768×576

Thermal Sensitivity (N.E.T.D): ≤0.03°C@30°C

Spatial Resolution: 1.13 mRad

Field of View (F.O.V): 24°x18°

Spectral range: 7.5~14μm

Focus Mechanism: Manual/Motor/Auto

Measurement

Temperature Range: -20°C ~ + 650°C, up to +1500°C (Optional)

Accuracy: ±1°C or ± 1% of readings (-20°C ~ + 150°C) ±2°C or ± 2% of readings

Image Presentation

Image Mode: IR/ CCD /Duo-Vision/Duo-Vision Plus/ PIP

Visible Pixels: HD 10MP Digital Camera

LCD Display: 3.5” Capacitive Touch Screen

Frame Rate: 50Hz /60 Hz

Digital Zoom: 1x to 10x, continuous

Colour Palettes: 10 Palettes

Measurement Tools: 10 moveable spot, Alarm, Auto hot/cold, 5 line profile, 10 areas box, centre spot,isoterm

Alarm: Alarm Yes, auto (above, below, equal)

File Format (Thermal/Visual): JPG

Laser

Laser Type: Class 2, 1mW/635nm, red

Laser Ranging: Yes

Measurement Range: 0.05m—30m

Environmental

Encapsulation: IP54

Shock/Vibration Resistance: 25G/2G

Operating Temperature: -20°C ~ +50°C

Physical Characteristics (Camera Body)

Weight: 1.1Kg (including batteries)

Dimensions: 232mm×115mm×168mm

Additional Features

Battery: Lithium-ion battery, 3.7V, 9000mAh

Battery Life: ≥5 hours (normal temperature)

Charging: Type-C 5V

Video Record: Yes, non-radiometric and radiometric video

Bluetooth: Yes

WIFI: Yes

GPS: Yes

QR Code Scan: Yes

Wireless Screen Projection: Yes

Optional Lens: 7/12/48 deg lens
