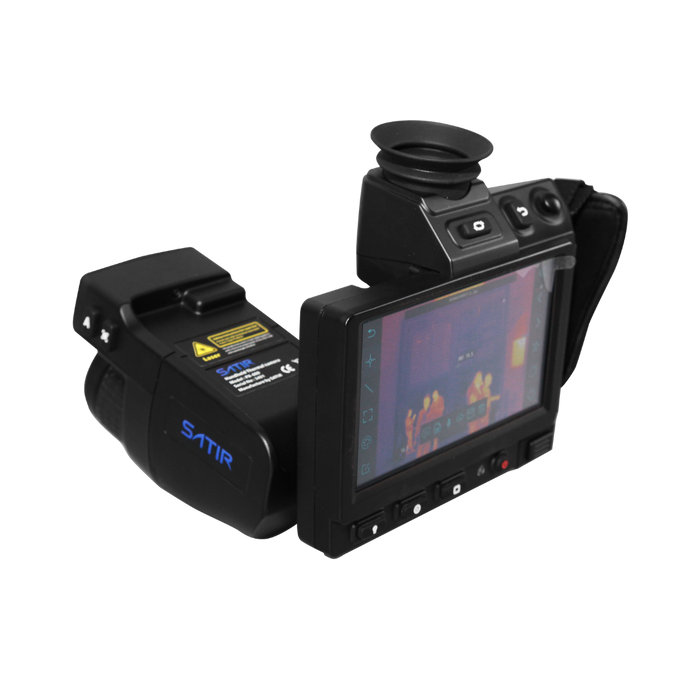

The SATIR PX-100 is a new generation handheld camera that has a new housing design for the industrial market. It features a 1024x768 IR detector which is the highest IR resolution on the market as it will deliver a clear, crisp image to the end-user on the touch screen.  It also has a 5MP digital camera which is useful when comparing thermal and digital images in reports. Its connectivity options are Wi-Fi and the Micro HDMI.  It has a wide temperature range of -20~+410°C, up to 2000°C upon request from the account manager. It has 10 colour palettes which allows the user to select the palette that best suits their needs and application.

The PX-100 is a premium thermal imager with its 1024x768 IR detector so it is best suited for those in the power and electrical industry who wish see electrical pylons at a distance. It is best suited to an experienced professional thermographer who will be able to understand and use all the capabilities of the PX-100.

Key Features:

• 1024x768 IR Detector

• HD 5MP Digital Camera

• IR/Digital/Duo-vision/PiP/MIF

• Manual/Motorized/Auto Focus

• Real Time Radiometric Video Recording

• GPS Function

• Optional Lenses Available: 6°/12°/48°

Specifications:

• Product Type: Thermal Camera


• Detector type: 1024x768 UFPA

• Thermal sensitivity: ≤0.02℃ @ 30℃ or 20mK @ 30℃

• Spatial resolution: 0.47mRad

• FOV: 28°x21°

• Focal Length: 25mm

• Focus Distance: 0.35m

• Spectral range: 7.5μm~14μm

• Frame rate: 60Hz

• Focus: Manual/Motorized/Auto

• Optional Lenses: 48°,12°,6°

Image presentation

• LCD display: 5.8 inch capacitive touch screen, 1280x768 Screen Resolution

• Palettes: 10 Colour Palettes

• Digital camera: HD 5MP

• Digital Zoom: 1x,2x,4x,8x

Image storage & Connectivity

• Type: 32GB removable SD card

• Thermal Image Format: .jpg/.png (Full Temperature Data)

• Thermal Video Format: Real—Time Radiometric recording (.irv)/.H264

• Video output interface: Micro HDMI

• Wifi: Yes

• Laser Distance: Yes, 0.01m to 40m displayed on thermal image

• GPS Function: Yes

• Alarm Mode: Yes

Temperature measurement

• Measurement range: -40°C~+650°C

• Tracking Function: Yes

• Analysis tool: 10 movable spots, auto hot/cold, 10 area boxes, 5 line

• Accuracy: ±2°C or 2% of readings

Environment specification

• Operating temperature range: -20℃~+55℃

• Encapsulation: IP54

Physical characteristic

• Weight: 1.77 KG (Includes Battery)

• Dimension: 247x90x177 mm

Power system

• Battery Type: Removable Rechargeable DC12V Lithium Battery

• Charging Mode: Two Socket or 12V Car Charger
